Painting Small Scale Armor
Part
Two

by Brett Green





Introduction

In Part One of “Painting Small Scale Armor” we discussed some techniques for painting freehand camouflage and using pastel chalk for weathering. Now we will explore some alternate methods for painting hard-edged camouflage finishes; and different ways to add dust and mud to your small scale tank.

Pastel chalk can produce great results, but the finish is fragile. The chalk can easily be damaged or completely removed with careless handling. Even the simple course of time will alter the appearance of the pastel “dust”.

However, it is possible to obtain a more robust dust and dried mud effect on your models.

The subject for these techniques is Emhar's 1/72 scale A7V WWI Sturmpanzer. This is a very simple little kit with only 30 plastic parts, but the detail is neverthless very good.

The real A7V was finished in a hard-edged mottle of red-brown over medium green. I wanted to depict the vehicle in fairly clean condition, but with a light coating of dust and some streaking and other subtle weathering.





Step 1:

The first step was to add mud texture to the running gear and lower hull of the model.

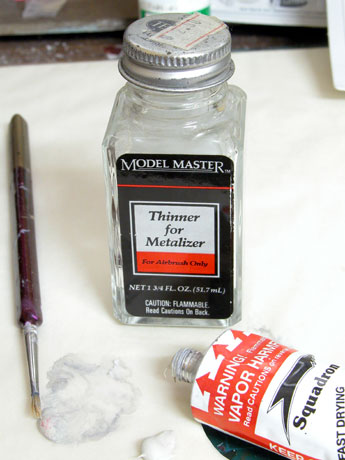

There are several ways to do this, but my favourite method is to create a thinned putty compound by mixing Squadron White Putty with Testor’s Metalizer Thinners. A blob of putty is squeezed out, then the Metalizer Thinners are mixed in with an old brush. Please note that the combination of the putty and thinners is highly noxious, and will require plenty of ventilation!

When a fairly thin consistency is achieved, the white “mud” can be randomly applied to the running gear and lower hull with the same old brush. Texture can be added to the wet mix by stippling with the brush.





The amount of mud applied is entirely up to the modeller. For this project I kept the effect subtle, as it was destined to depict a little dried mud under dust.



Step 2: Pre-Shading

Painting can now commence.

I like to spray the entire model black before applying the camouflage colors. I used the Testor Aztek A470 airbrush fitted with the fine-line (tan colored) tip for all the spraying on this project.





This black coat will provide scale shadows in the dark recesses of the vehicle after the camouflage colors have been applied. It is therefore important to spray the black into all the nooks and crannies of the model.



Step 3: Base Camouflage Colour



I used Polly Scale US Medium Green (an aircraft colour) as the base camouflage coat.



This overall camouflage color was sprayed with the airbrush held at a consistent high angle. This left "shadows" in appropriate places. I was also careful to leave streaks of the black undercoat visible on the side of the hull.



Step 4: Outlining the Hard-Edged Mottles

Instead of masking the hard-edged mottles, I decided to paint the outlines with a fine brush. Polly Scale German Red Brown was the colour chosen for the mottles.







Step 5: Filling-In the Mottles

I used the Aztek airbrush to spray Red Brown inside the brush-painted outlines. The slight overspray would later be corrected under a coat of weathering.







Step 6: Gloss Coat and Decals

The model received an overall coat of Polly Scale Acrylic Gloss. When this was dry, the kit decals were applied.







Step 7: Spraying the "Dust and Mud"

I mixed up a batch of very pale tan paint and added a drop of Tamiya Flat Base to the paint cup. This was thinned almost to the consistency of water using Testor's Model Master Acryl thinner.

The thin, dusty coat was sprayed over the running gear and lower hull with a very soft demarcation at the top. The front and rear mud guards were also thoroughly covered in this colour.

Fine streaks of "dust" were also sprayed on the hull sides from top to bottom.





Step 8: Oil Wash

I mixed a wash from Raw Umber oil paint and odorless thinners. I use oil paints from the Rowney Georgian range.

This wash was applied sparingly around rivet heads, doors and panels. I also coated the running gear in the oil wash to give it a slightly wet look.





After about a half an hour, the excess wash was blotted from the model.



Step 9: Flat Coat and Detail Painting

When dry, the wash was sealed with a coat of Polly Scale Flat Clear.

The A7V had exhaust holes in each side of the hull. I sprayed a flat, sooty mix of black along the hull side to depict exhaust stains.

To complete the paint job, the protruding machine guns were brush-painted with Testor's Gunmetal Metalizer.







Conclusion

Small-scale armour models are a great canvas for testing new construction and painting techniques. They generally do not require a large investment of either money or time.

The techniques described in this series are only suggestions. Feel free to experiment with methods of your own.

As always, the important thing is to have a go, and enjoy yourself!



More Pictures

Click the thumbnails to view larger pictures:
